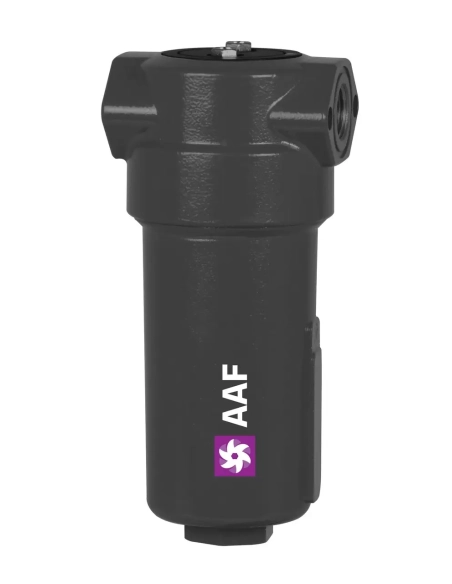

The new series of filters is developed with a focus on functionality, reliability and ease of maintenance.
The expanded range of flow capacities means even greater usability of our basic line of filters, which now also cover applications with extremely low air flows and small sized pipe connections.
Installation is even easier and more reliable with the new connection design. Technology, expertise and experiences, combined in the AAF series filters are the best solution to get the best air quality in your process, regardless of its size.
High quality compressed air was always our priority. Quality means less downtime of production processes, leading to your higher profits, and greater satisfaction as a professional in this field. Among other things, the internal and external surfaces of AAF series of filters is protected by KTL Cataphoretic coating process as standard. KTL corrosion protection assures excellent chemical resistance to aggressive environment and also serves as an excellent primer for external powder paint finish.
Characteristics
| operating pressure | 16 bar |
| volume flow rate | 10 to 2760 Nm3/h |
| connections | 1/8’’ to 3’’ |
| operating temp. range | 1,5 to 65 °C |
| standard colour | RAL 5012 |
Applications
• general industrial applications
• automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
• paint
Optional equipment
A wide range of condensate drains and pressure drop indicators can be installed on the filter housings, which can be selected from our production program.
To meet the requirements of compressed air quality according to ISO 8375-1 of your application, 9 types of filter elements of different filtration levels are available.
An element for cyclone condensate separation can also be installed in the same housing without additional modifications, which serves as the first-rough stage of condensate removal from the compressed air system.
NEW features
• A wider range of different models for different flow rates, including larger 2” and 3” sizes.
• Convenient design for assembly of several filters and for wall mounting
• AVELOCK antivibration element lock system
• Needle felt drainage layer instead of foam for improved thermal resistance
• X2-COAT internal anti-corrosion protection
| FILTER HOUSING | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Filter housing size | Pipe size | Max.oper. press. | Flow rate at 7 bar(g), 20 °C | Dimensions | Mass | Filter element type | CODE | ||||
| inch | bar/psi | Nm³/h | scfm | A [mm] | B [mm] | C [mm] | D [mm] | kg | |||
| AAF 0006 (3) | 1/8" | 16/232 | 10 | 6 | 105 | 55 | 14 | 50 | 0,23 | 3528 | 3518670 |
| AAF 0016 (3) | 1/4" | 16/232 | 18 | 11 | 125 | 55 | 14 | 70 | 0,24 | 5528 | 3518681 |
| AAF 0026 | 1/4'' | 16/232 | 25 | 15 | 145 | 73 | 18 | 50 | 0,42 | 3844 | 3518703 |
| AAF 0036 | 3/8'' | 16/232 | 30 | 18 | 145 | 73 | 18 | 50 | 0,42 | 3844 | 3518741 |
| AAF 0046 | 1/4'' | 16/232 | 35 | 22 | 189 | 88 | 32 | 60 | 0,72 | 6050 | 3518777 |
| AAF 0056 | 3/8'' | 16/232 | 60 | 35 | 189 | 88 | 32 | 60 | 0,6 | 6050 | 3518815 |
| AAF 0076 | 1/2'' | 16/232 | 78 | 46 | 189 | 88 | 32 | 80 | 0,6 | 7050 | 3518921 |
| AAF 0106 | 3/4'' | 16/232 | 120 | 70 | 257 | 88 | 32 | 150 | 0,7 | 14050 | 3519085 |
| AAF 0186 | 1" | 16/232 | 198 | 116 | 261 | 125 | 37 | 160 | 1,2 | 12075 | 3519253 |
| AAF 0306 | 1" | 16/232 | 335 | 197 | 361 | 125 | 37 | 250 | 1,6 | 22075 | 3519377 |
| AAF 0476 | 1 1/2" | 16/232 | 510 | 300 | 461 | 125 | 37 | 350 | 1,9 | 32075 | 3519493 |
| AAF 0706 | 1 1/2" | 16/232 | 780 | 459 | 641 | 125 | 37 | 530 | 2,6 | 50075 | 3519615 |
| AAF 0946 | 2 | 16/232 | 1 000 | 588 | 696 | 164 | 50 | 520 | 5,7 | 51090 | 3519731 |
| AAF 1506 | 2 | 16/232 | 1 500 | 882 | 943 | 164 | 50 | 770 | 7,6 | 76090 | 3519747 |
| AAF 1756 | 2 1/2 | 16/232 | 1 680 | 990 | 943 | 164 | 50 | 770 | 7,3 | 76090 | 8350014 |
| AAF 2006 | 3 | 16/232 | 2 160 | 1 270 | 801 | 242 | 60 | 630 | 16,7 | 51140 | |
| AAF 2406 | 3 | 16/232 | 2 760 | 1 620 | 998 | 242 | 60 | 780 | 21,3 | 75140 | |
Remarks:
- Filter elements ’’A'' must be changed periodically to suit application, but at least every 6 months. Activated carbon filters must not operate in oil saturated conditions.
- Valid if ''S'' filter cartridge is installed upstream.
- For size AAF 0006 and 0016 no differential pressure indicator and no internal condensate drain is available, IED not available.
| CORRECTION FACTORS | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating pressure [bar] | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Operating pressure [psi] | 29 | 44 | 58 | 72 | 87 | 100 | 115 | 130 | 145 | 160 | 174 | 189 | 203 | 218 | 232 |
| Correction factor | 0,38 | 0,5 | 0,63 | 0,75 | 0,88 | 1 | 1,13 | 1,25 | 1,38 | 1,5 | 1,63 | 1,75 | 1,88 | 2 | 2,13 |
